Pipe jacking Reference projects
Storage area for the DN 1200 reinforced concrete jacking pipes
Part of the jacking system is transported with the excavator

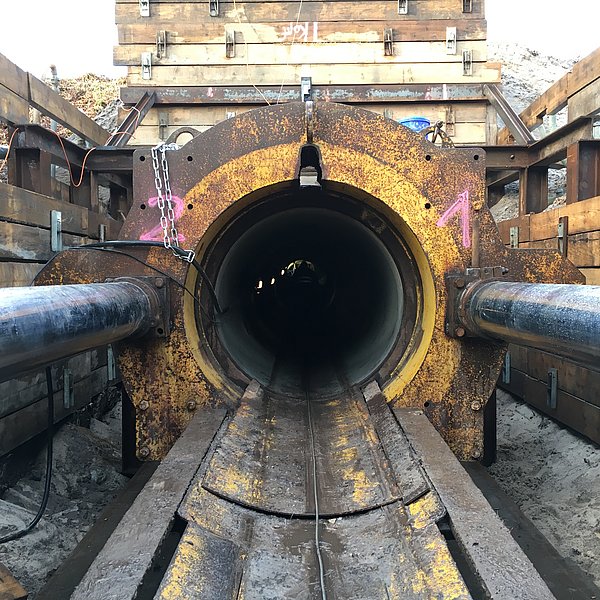

Setting up the jacking system in the starting pit
Setting up the jacking system

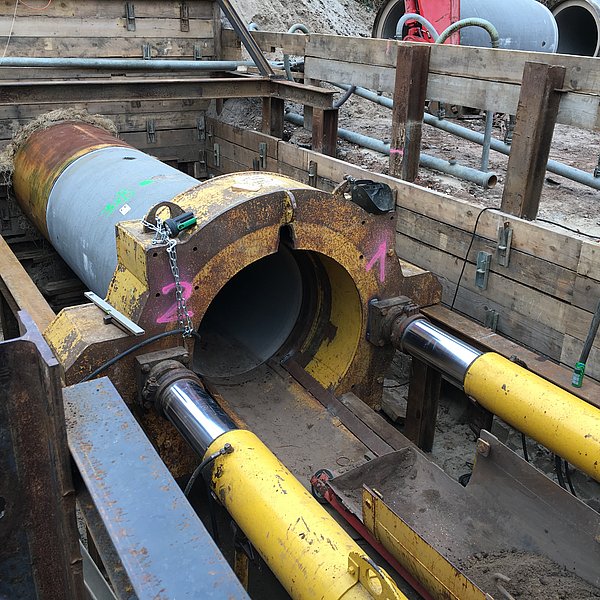

Jacking system pressing a jacking pipe
Jacking system pressing a jacking pipe
Manually excavated soil is transported out
Manual soil excavation in the jacking shield
Jacking system

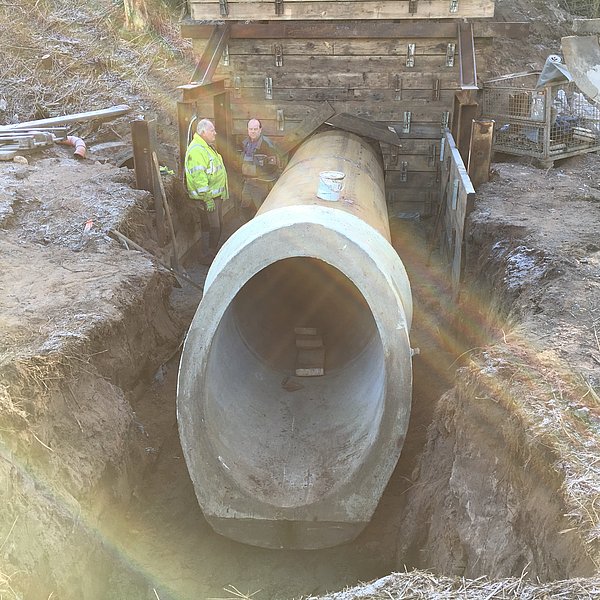

Jacked pipe in the target pit
Finished drainage sewer
Back to list

Grossenaspe, Meiereigraben

Pipe Jacking DN 1200 reinforced concrete

  • 25 m manned pipe jacking with controllable open head of a RC pipe DN 1200 under a railway embankment
  • construction of the start- and target pit by horizontal timber sheeting
  • construction of a brick manhole 1500 mm
  • groundwater lowering

Lenght: 25 m

Depth: 2.00 m - 6.00 m

Execution details

Client
AKN Eisenbahn AG
Execution period
10/2016 – 01/2017
Execution volume
266 k Euro net
